The EasiChas kit produces a sprung chassis in either EM or P4 gauge for the Hornby GWR 5101 and 61xx 2-6-2T.

These large Prairie tanks were an updated version of the Churchward engines introduced in 1903.

They were divided into two classes: the 5101 class (5101-5110, 5150-99, 4100-79) introduced in 1929, for general use, with 200 lb. pressure boilers followed by the 6100 class (6100-69), specifically to work accelerated London suburban services, with 225 lb. pressure boilers.



Click to zoom in

There are various levels of conversion with the builder choosing which, of any, additional detail required beyond the basic conversion which makes use of fold-up mainframes, keep plate, and ashpan with sprung bearings, and a separate etch for the rear frame.

Further components are provided to add to the detail of the conversion. These are, working from the front:

replacement pony and rear trucks

replacement coupling rods

replacement brake hangers and blocks

replacement brake pull rods

reverser lever

brake shaft brackets

improved sand box detail

rear buffer beam brackets

Download the instructions

Suitable wheels are available from Alan Gibson, Ultrascale and Markits. (Pony truck: 3'2" dia. 10 spokes, Driving: 5 8" dia. 18 spokes, Rear truck: 3' 8" dia. 10 spoke). As the Hornby model uses 2mm axles, there are no standard replacement packs, so the EasiChas uses 1/8 axles for the driving wheels and 2mm axles for the pony truck and rear axle.

Reference H251 - price 65

Note the kit is only suitable for the version introduced in 2021.

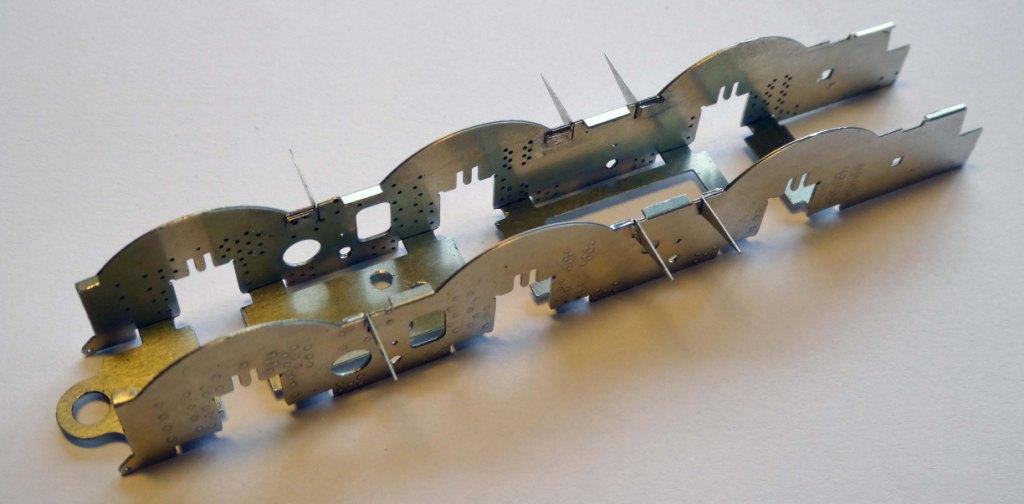

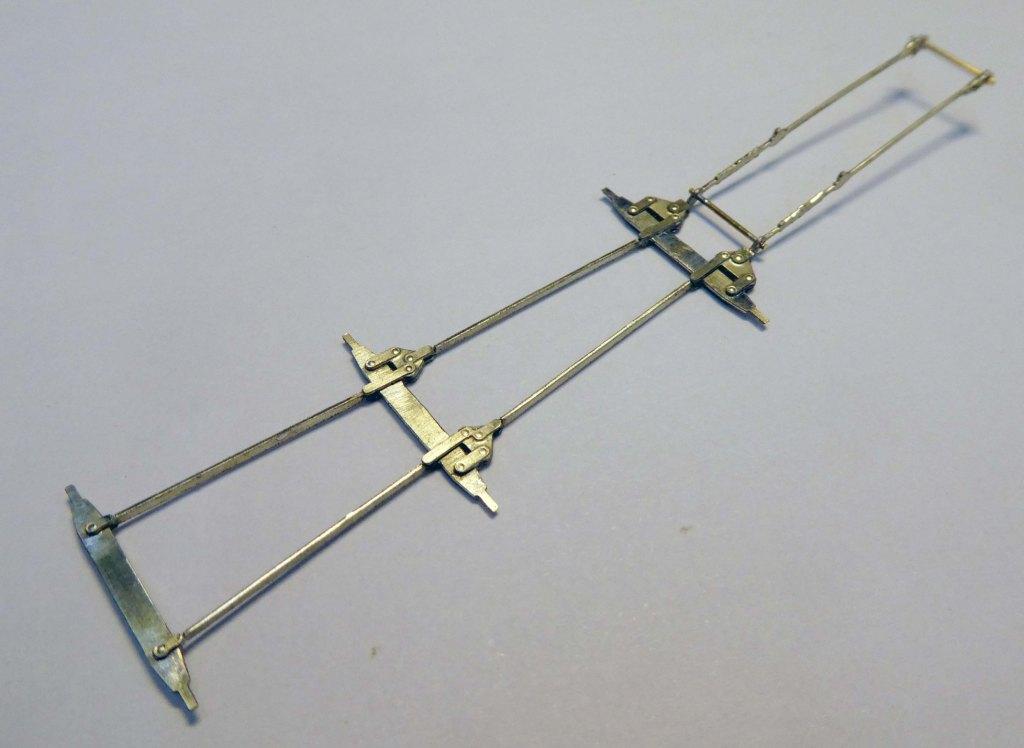

Side view Top view Close-up of cut-outs for bearings Brake gear
