Locomotive and Tender EasiChas etch
|
L1 |
main frames |
L18 |
rear brake cylinder lever |
|
L2 |
keep plate |
L19 |
rear brake pull rods |
|
L3 |
ash pan |
L20 |
front brake pull rods |
|
L4 |
washer |
L21 |
front brake shaft lever overlay (2) |
|
L5 |
buffer beam bracket base left |
L22 |
front brake shaft lever |
|
L6 |
buffer beam bracket base right |
L23 |
front brake cylinder lever |
|
L7 |
buffer beam bracket web |
L24 |
brake hanger 1 (8) |
|
L8 |
footplate bracket base left |
L25 |
brake hanger 2 (8) |
|
L9 |
footplate bracket base right |
L26 |
brake block (8) |
|
L10 |
footplate bracket web (2) |
L27 |
brake hanger bracket |
|
L11 |
brake shaft ring |
L28 |
3 mm axle washers 0.4 mm thick |
|
L12 |
brake pull rod (single) |
L29 |
3 mm axle washers 0.2 mm thick |
|
L13 |
brake beam overlay (1 hole) (4) |
|
|
|
L14 |
brake beam overlay (2 holes) (2) |
T1 |
tender frames |
|
L15 |
brake beam overlay (3 holes) (2) |
T2 |
tender axleboxes (6) |
|
L16 |
brake pull rod overlay (2) |
T3 |
2 mm axle washers 0.4 mm thick |
|
L17 |
brake pull rod lever |
T4 |
2 mm axle washers 0.2 mm thick |
Tender Frame etch
|
F1 |
tender frames |
F14 |
footplate valance right hand |
|
F2 |
tender footplate |
F15 |
valance jig |
|
F3 |
early buffer beam |
F16 |
frame strengthening strip left hand |
|
F4 |
rivetted buffer beam |
F17 |
frame strengthening strip right hand |
|
F5 |
buffer beam back |
F18 |
left hand step outside edge |
|
F6 |
buffer base (2) |
F19 |
step back (2) |
|
F7 |
draw beam (cut away) |
F20 |
left hand step inner edge |
|
F8 |
draw beam (full) |
F21 |
footstep (2) |
|
F9 |
draw beam back |
F22 |
right hand step outer edge |
|
F10 |
drawbar pocket casting |
F23 |
right hand step inner edge |
|
F11 |
rivet strip left hand |
F24 |
guard iron left |
|
F12 |
rivet strip right hand |
F25 |
guard iron right |

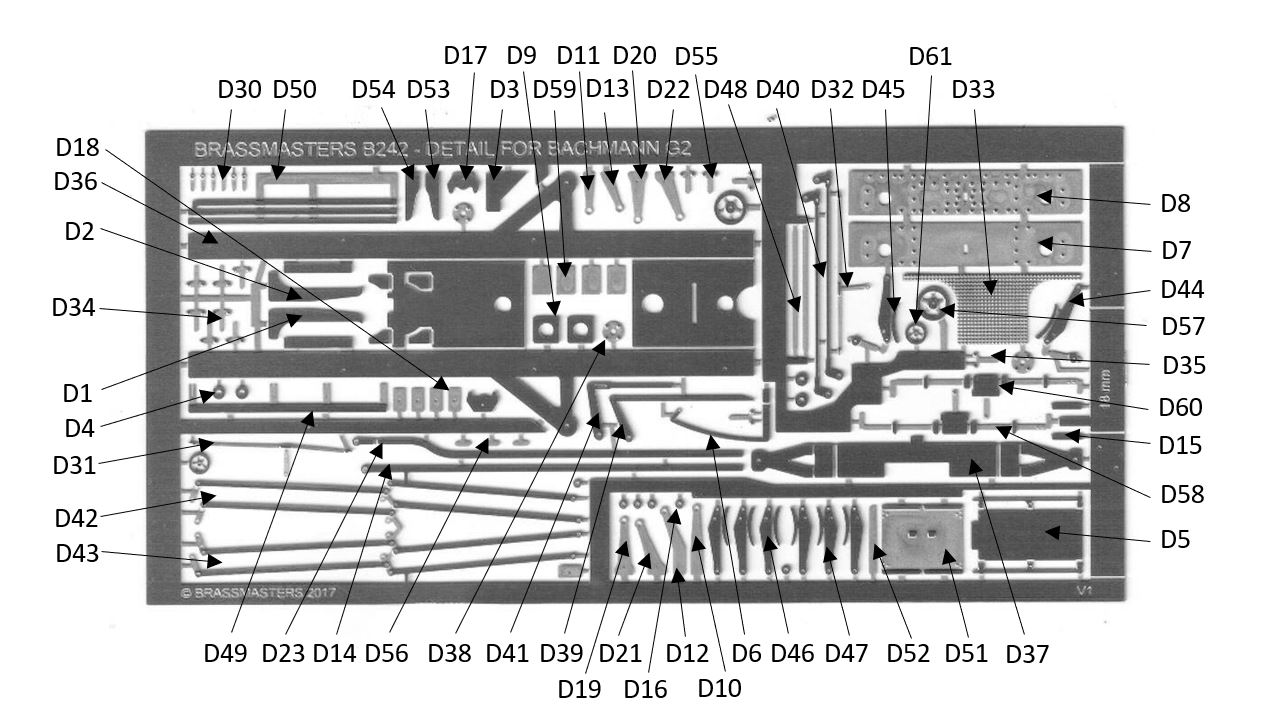

Detailing Etch
|
D1 |
loco guard iron left |
D34 |
footplate lamp iron (6) |
|
D2 |
loco guard iron right |
D35 |
smokebox lamp iron |
|
D3 |
sandbox template |
D36 |
00 brake frame (not used) |
|
D4 |
sandbox bottom flange |
D37 |
brake shaft bracket |
|
D5 |
drain cocks |
D38 |
brake shaft bracket overlay (2) |
|
D6 |
drain cock operating rod |
D39 |
handbrake lever |
|
D7 |
buffer beam original |
D40 |
handbrake pull rod (2) |
|
D8 |
buffer beam strengthened |
D41 |
vacuum brake lever |
|
D9 |
buffer bases (2) |
D42 |
brake pull rod 1 (2) |
|
D10 |
indirect valve gear lever front (mid gear) |
D43 |
brake pull rod 2 (2) |
|
D11 |
indirect valve gear lever back (mid gear) |
D44 |
brake hanger and block left front |
|
D12 |
indirect valve gear lever front (fore gear) |
D45 |
brake hanger and block right front |
|
D13 |
indirect valve gear lever back (fore gear) |
D46 |
brake hanger and block left (2) |
|
D14 |
indirect reach rod |
D47 |
brake hanger and block right (2) |
|
D15 |
reach rod joint plate |
D48 |
vacuum reservoir straps (2) |
|
D16 |
washer |
D49 |
fire iron rail straight |
|
D17 |
bearing base |
D50 |
fire iron rail curved |
|
D18 |
spacer |
D51 |
coal space doors |
|
D19 |
direct valve gear lever front (mid gear) |
D52 |
coal space doors centre |
|
D20 |
direct valve gear lever back (mid gear) |
D53 |
tender guard iron left |
|
D21 |
direct valve gear lever front (fore gear) |
D54 |
tender guard iron right |
|
D22 |
direct valve gear lever back (fore gear) |
D55 |
tender top lamp iron |
|
D23 |
direct reach rod |
D56 |
lamp iron spacer |
|
|
D24-D29 not used |
D57 |
tender handwheels |
|
D30 |
sandbox levers (4) |
D58 |
rear footstep left |
|
D31 |
sander operating rod left |
D59 |
upper footstep |
|
D32 |
sander operating rod right |
D60 |
rear footstep right |
|
D33 |
cab floor |
D61 |
smokebox door wheel |
|

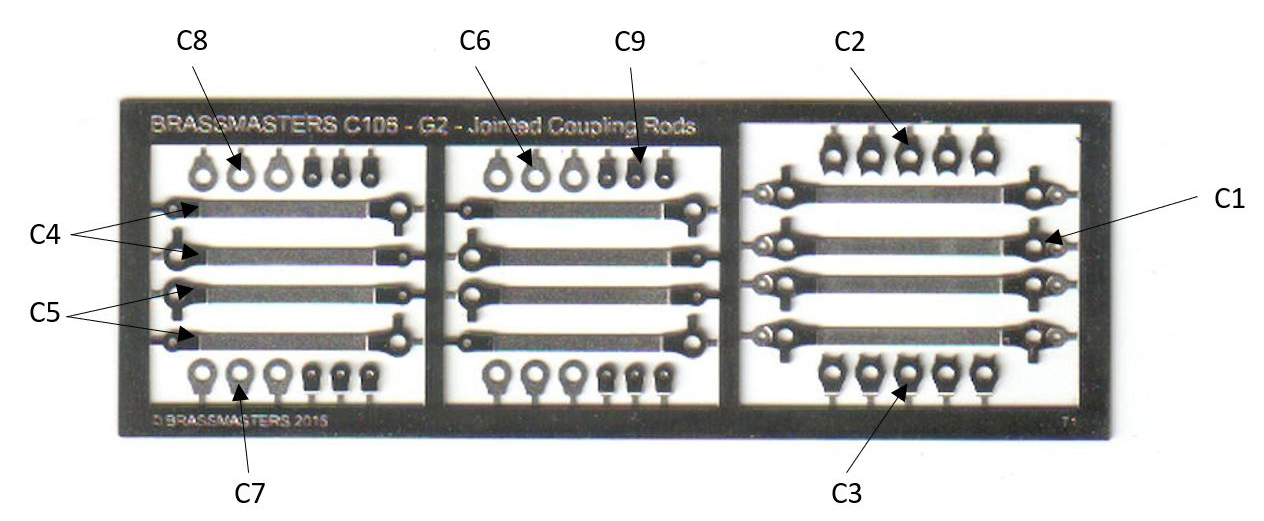

C1 |
centre rods (4) |
C6 |
outer boss overlay (4) |
|
C2 |
centre rod boss left hand (4) |
C7 |
inner boss overlay left (2) |
|
C3 |
centre rod boss right hand (4) |
C8 |
inner boss overlay right (2) |
|
C4 |
outer rod half (4) |
C9 |
forked end overlay (8) |
|
C5 |
outer rod half (4) |
|
|

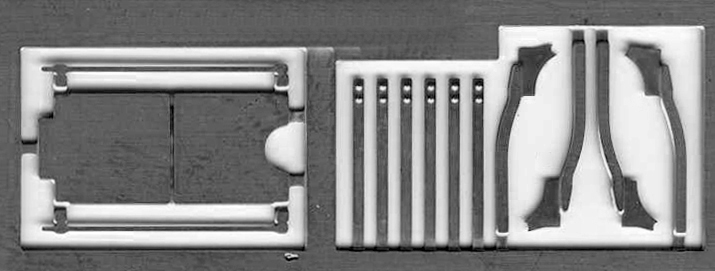

Supplementary etch
|
S1 |
rear sandpipe bracket left |
S3 |
front sandpipe brackets (4) |
|
S2 |
rear sandpipe bracket right |
S4 |
cylinder drain cock mechanism |
