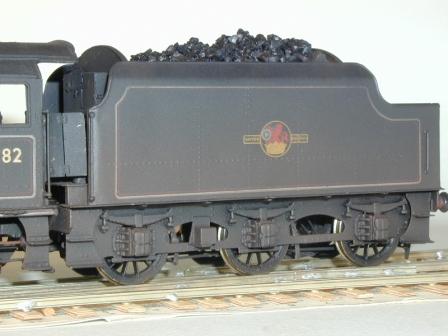

Riveted tanks Welded tanks Part-welded tanks

Click pictures to view full size

Click here to see exploded drawings, photographs of the etches and to download the instructions and prototype notes

Ref



Specification

Price

To complete

T101

 Riveted tanks  Etched brass superstructure and chassis

 Whitemetal and turned fittings

55

  Wheels

 4'3" 12 spoke - Ultrascale or Alan Gibson G4851ST
T102  Welded tanks 55
T103  Part-welded tanks 55

The most numerous type of Stanier tender was the 4000 gallon nine ton model, initially built with snaphead rivets, later with fully welded tanks and finally with part-riveted / part-welded tanks. The design represented a considerable advance over the earlier LMS Fowler standard tender and featured high curved in sides and greatly improved layout.

The 4000 gallon tenders were paired with several LMS classes:  Black 5  4-6-0, 5XP Jubilee 4-6-0, 8F 2-8-0, Royal Scot 4-6-0  (and rebuilt Patriots/Jubilees), Princess 4-6-2 (in 1935/6)

Other than the design change from riveted to welded tanks, there were few details changes over the life of the tenders. The pattern of axlebox cover plate changed from plain to cross ribbed after the first batches of riveted tenders, and 20 of the part-welded examples had roller bearing axles.. However the main visual difference was on the tenders attached to the Royal Scots which had a higher front footplate to match the height of the locomotive cab floor.
