| These pictures show the test build of a model of 46200
with the GWR style "rabbit-ears" motion. Click on the images to zoom in.
Note the test model does not have any detail parts added such as
handrails, oilboxes, buffers, etc because it was built to prove the
chassis which is the most complex part of the kit. |
 |
 |
|
6200/1 test build model |

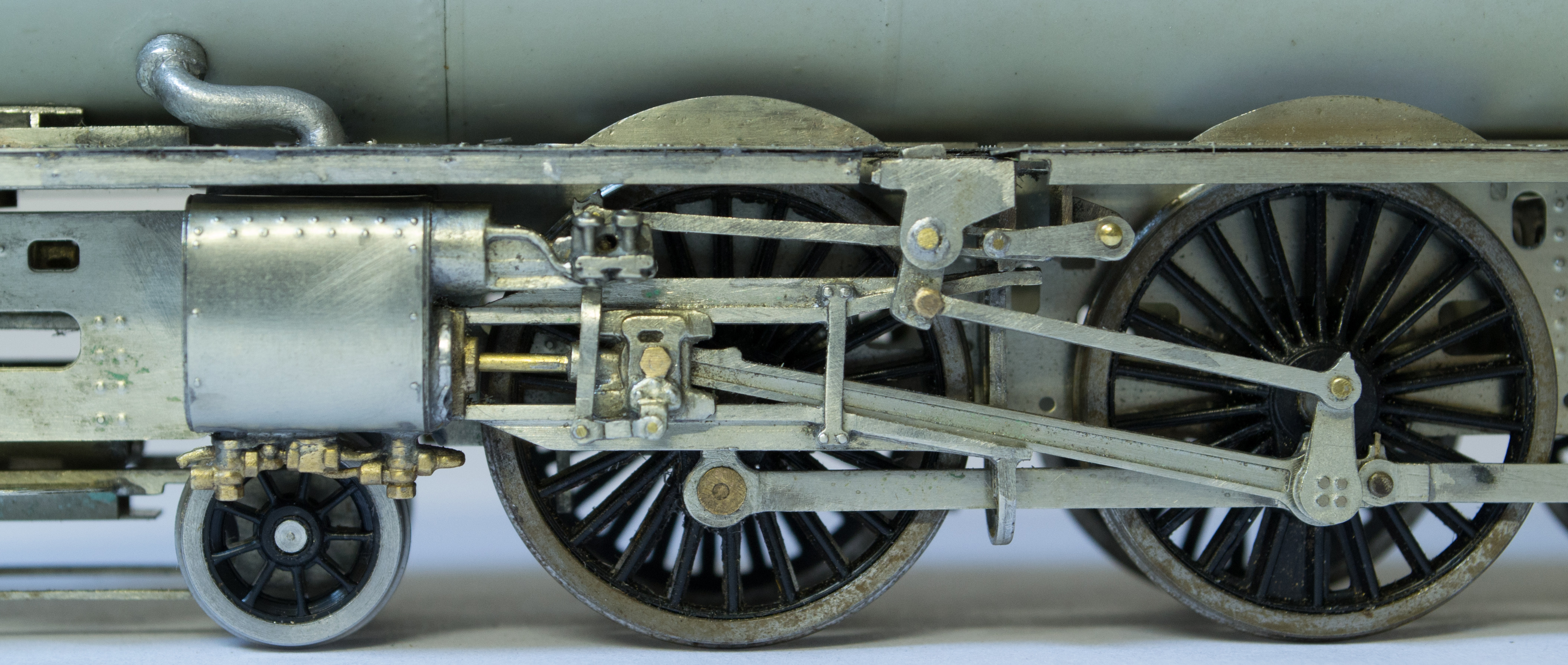

6200/1 motion (inside valve gear not yet fitted!) |
 |
 |
 |
|

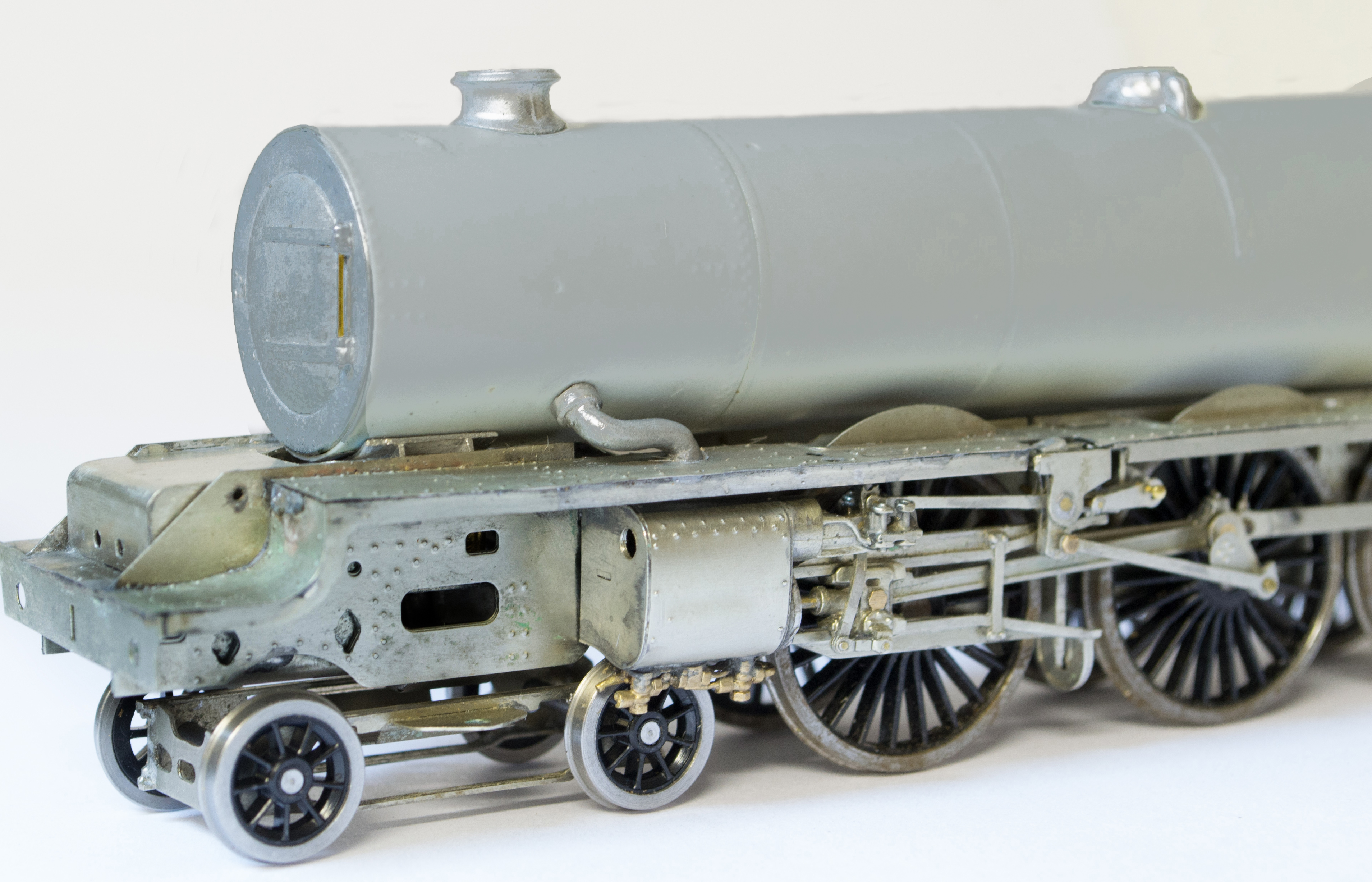

Bogie, pony truck and buffers now added |
From above |
 |
 |
 |
|
This is a very long locomotive! |

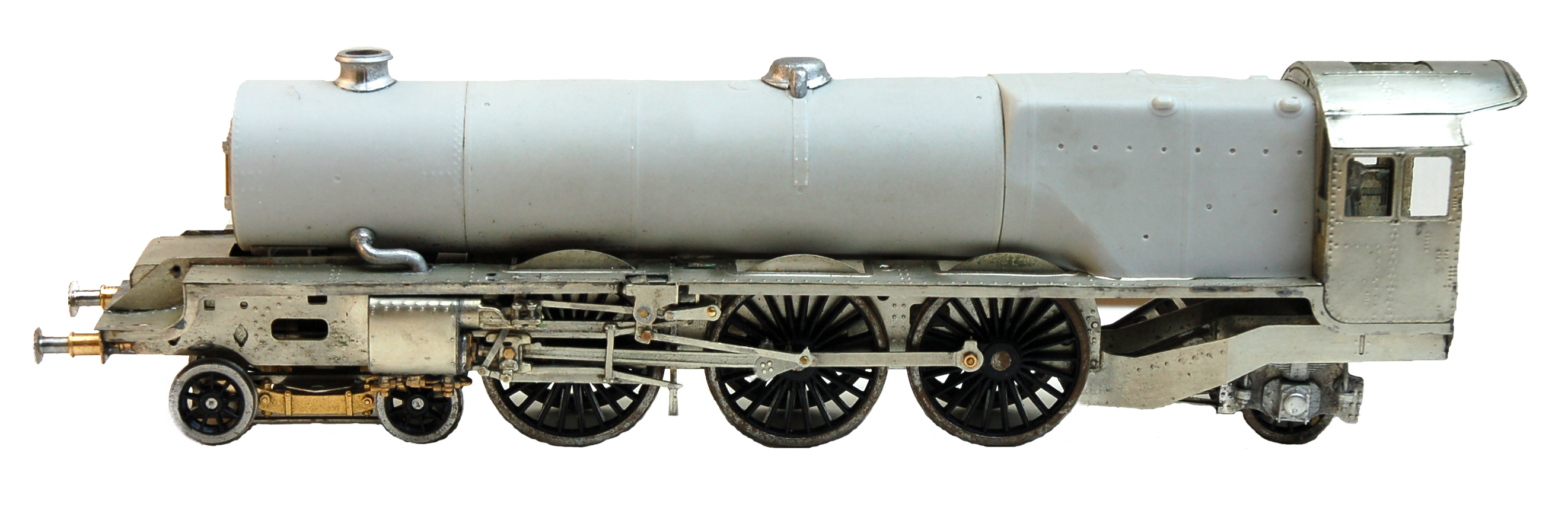

Side views close in |
 |
 |
 |
|
From below |
From below close in |
 |
%20-%20small.jpg) |
%20-%20small.jpg) |
|
Bogie |

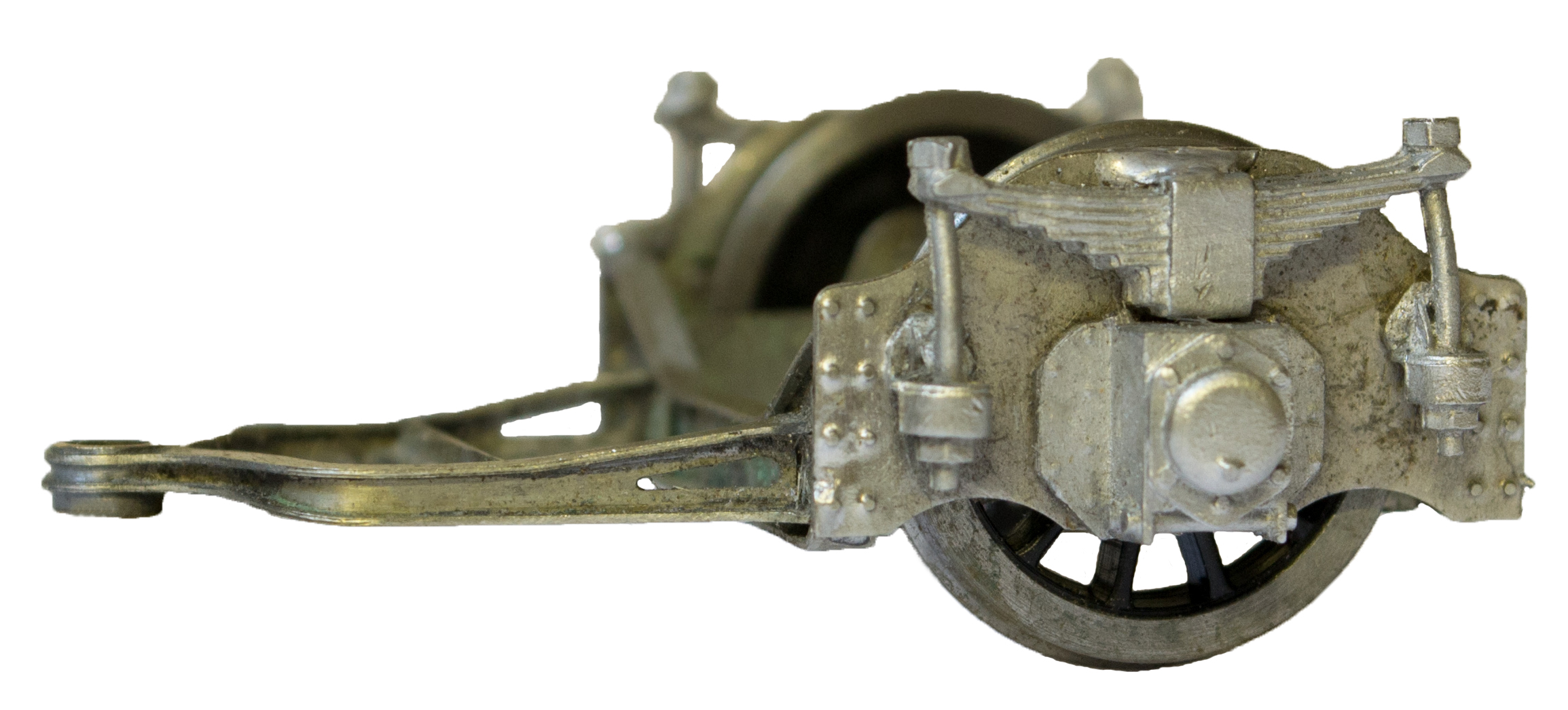

Pony truck with roller bearings |
Pony truck with plain bearings |
 |
 |
 |
 |
| Bogie |
Pony truck |

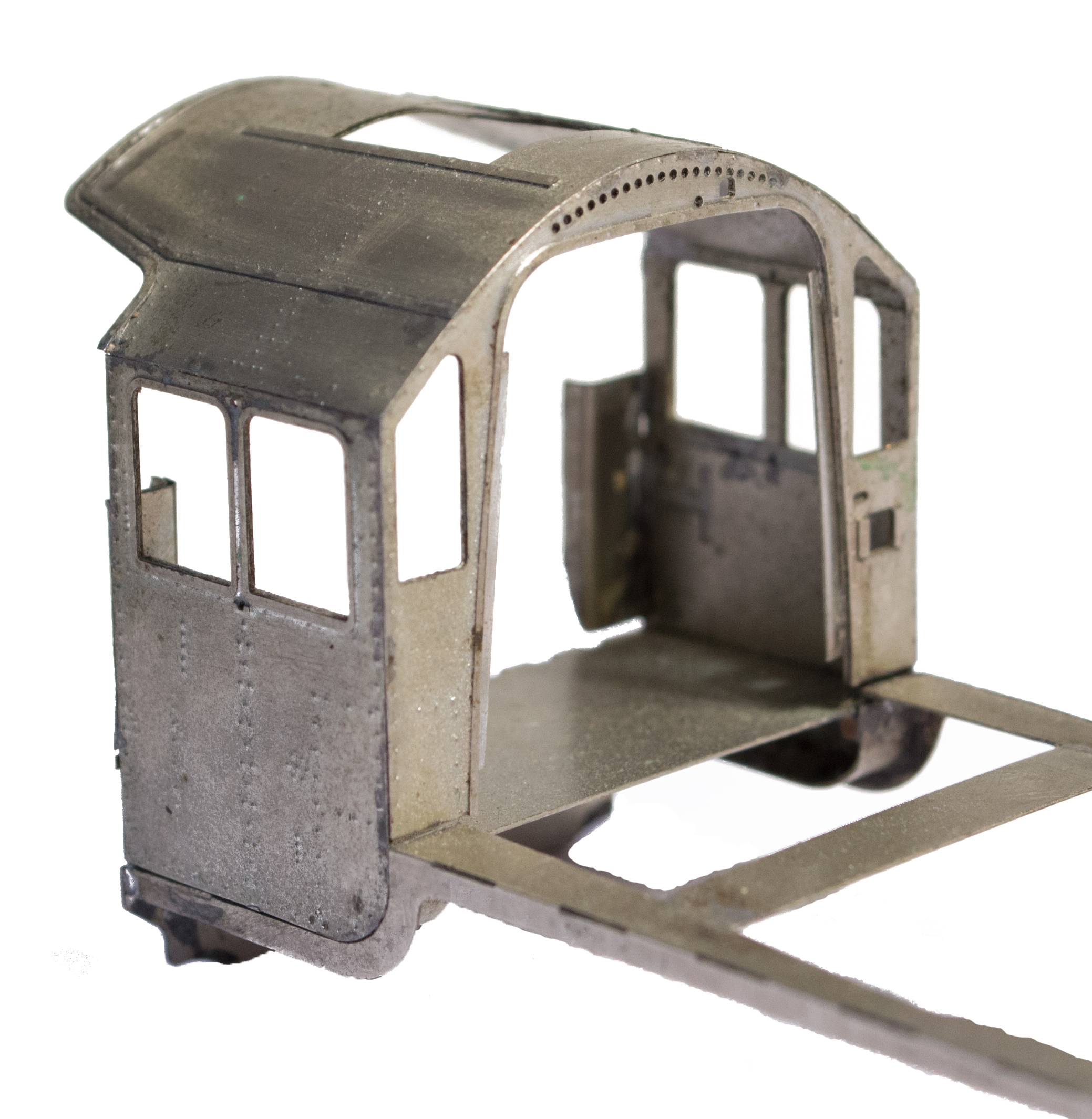

Cab-front |

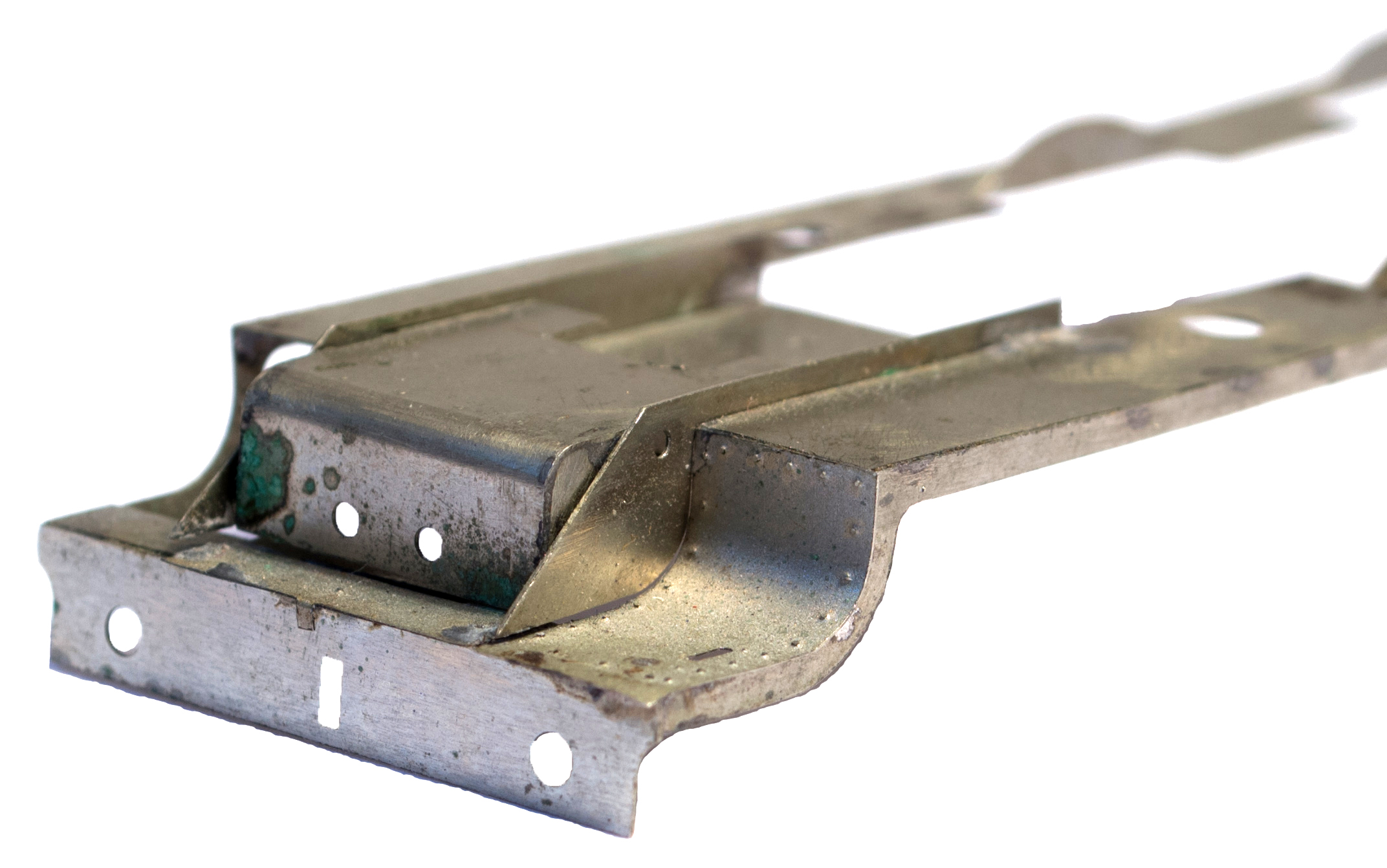

Front footplate |
 |
 |
 |
 |
|

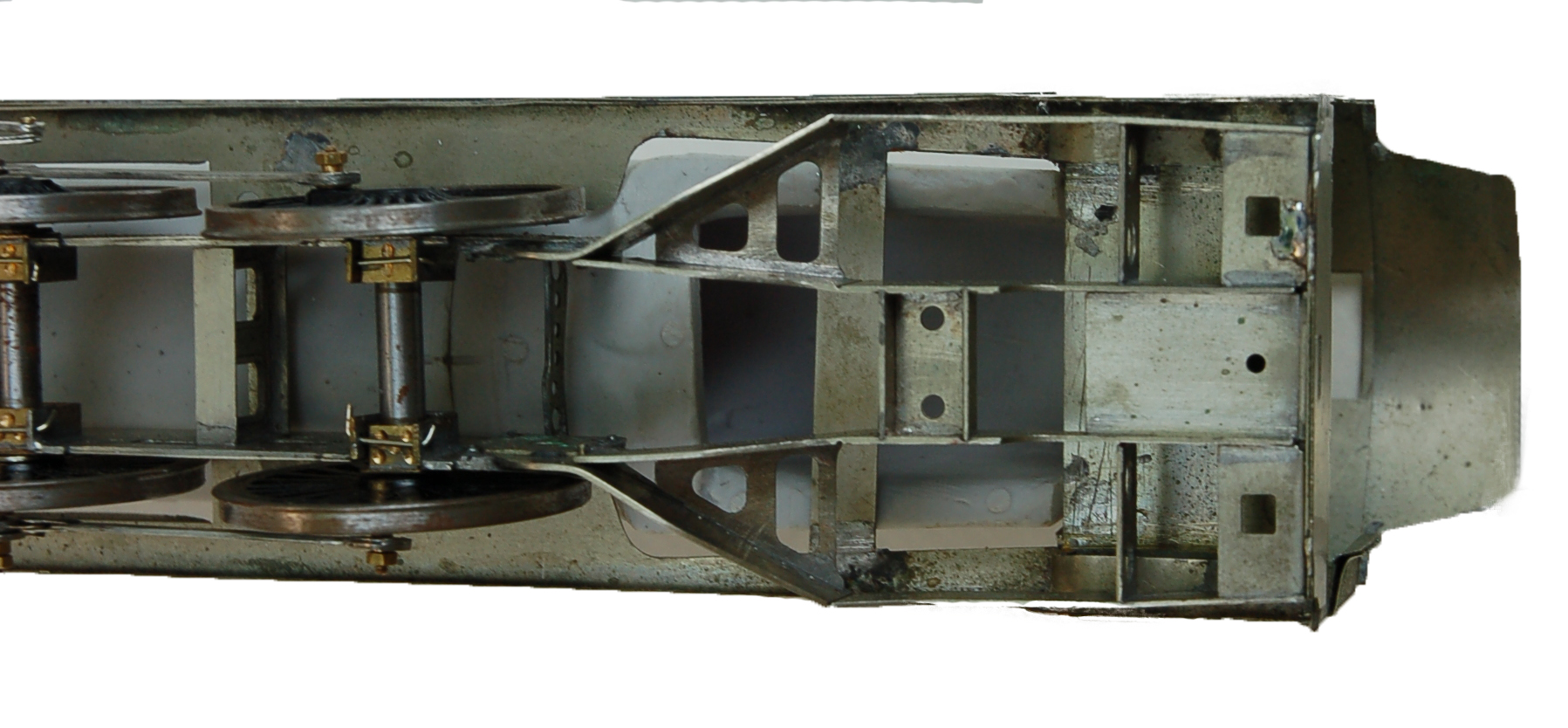

Frames - rear top view from front |
Frames - inside motion |
Motion bracket 6200-01 |

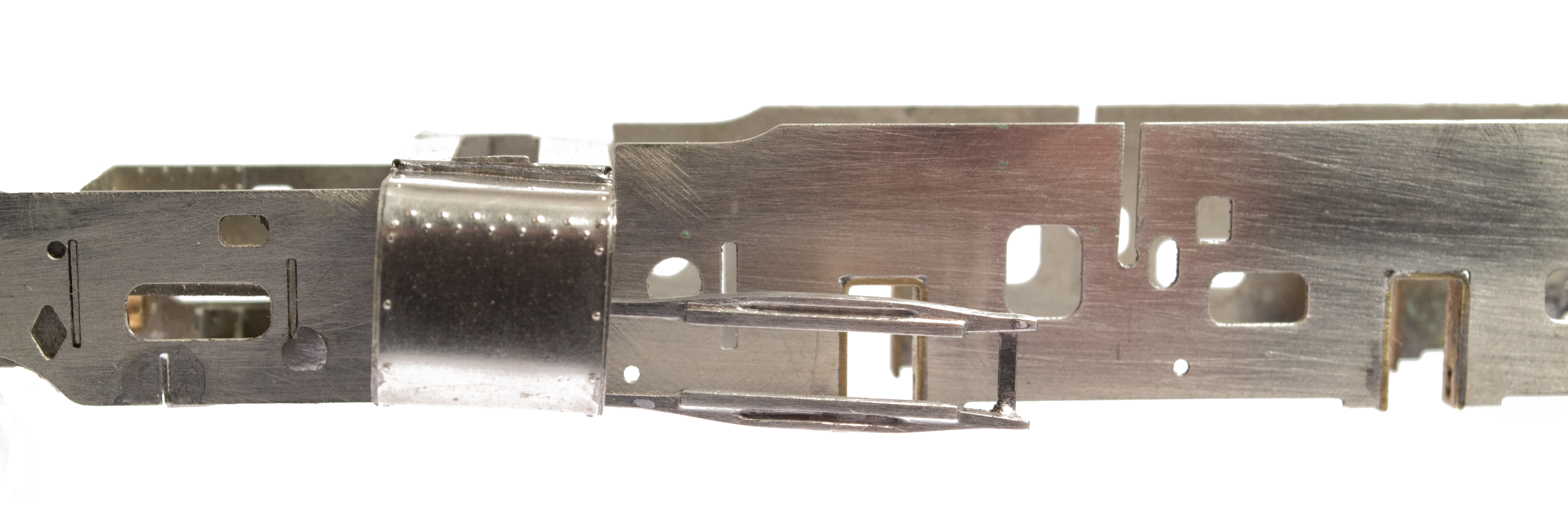

Cylinders, frames and slidebars |
 |
 |
 |
 |
|
Tender front |
Rear bulkhead |

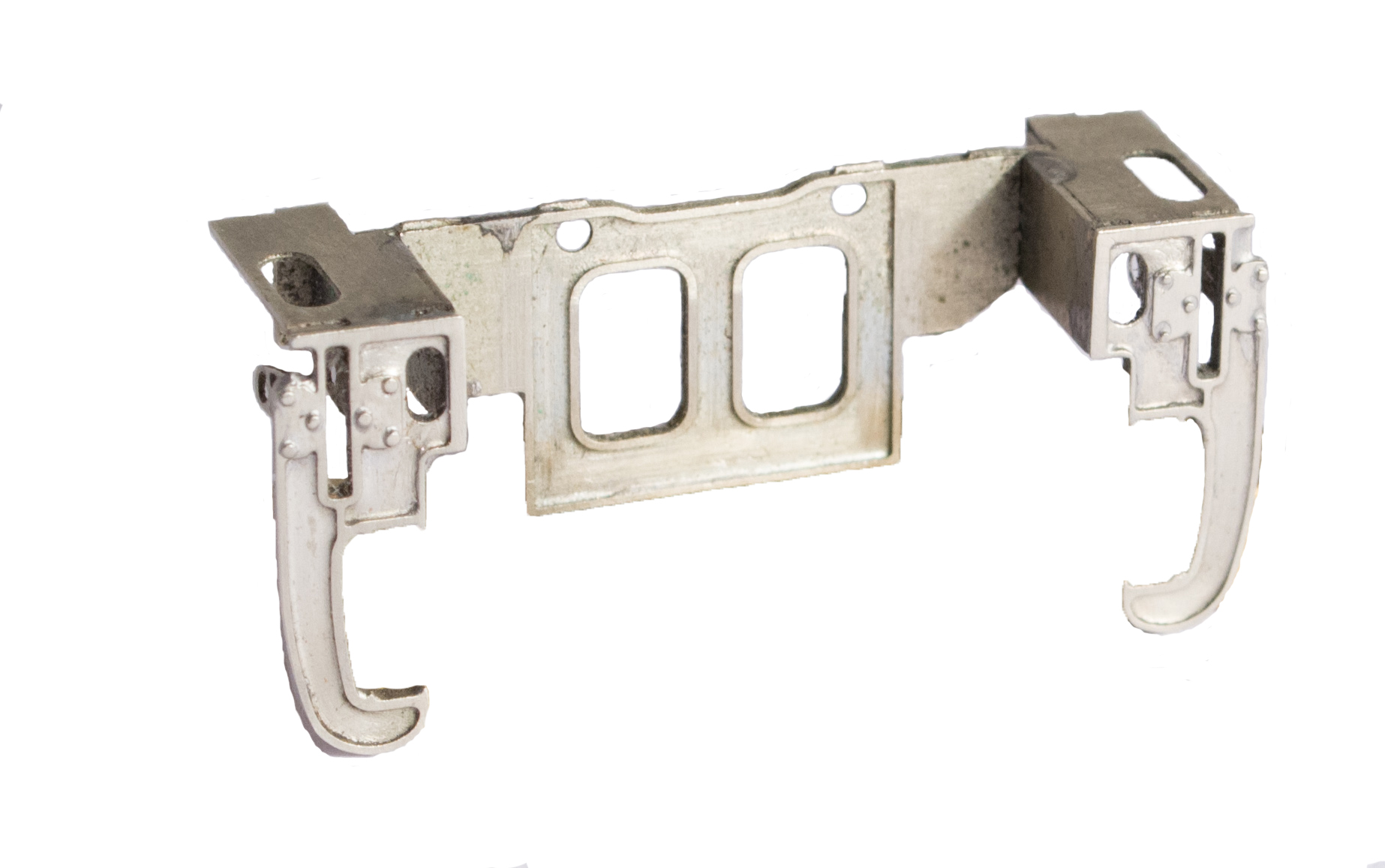

Motion bracket 6203-12 |

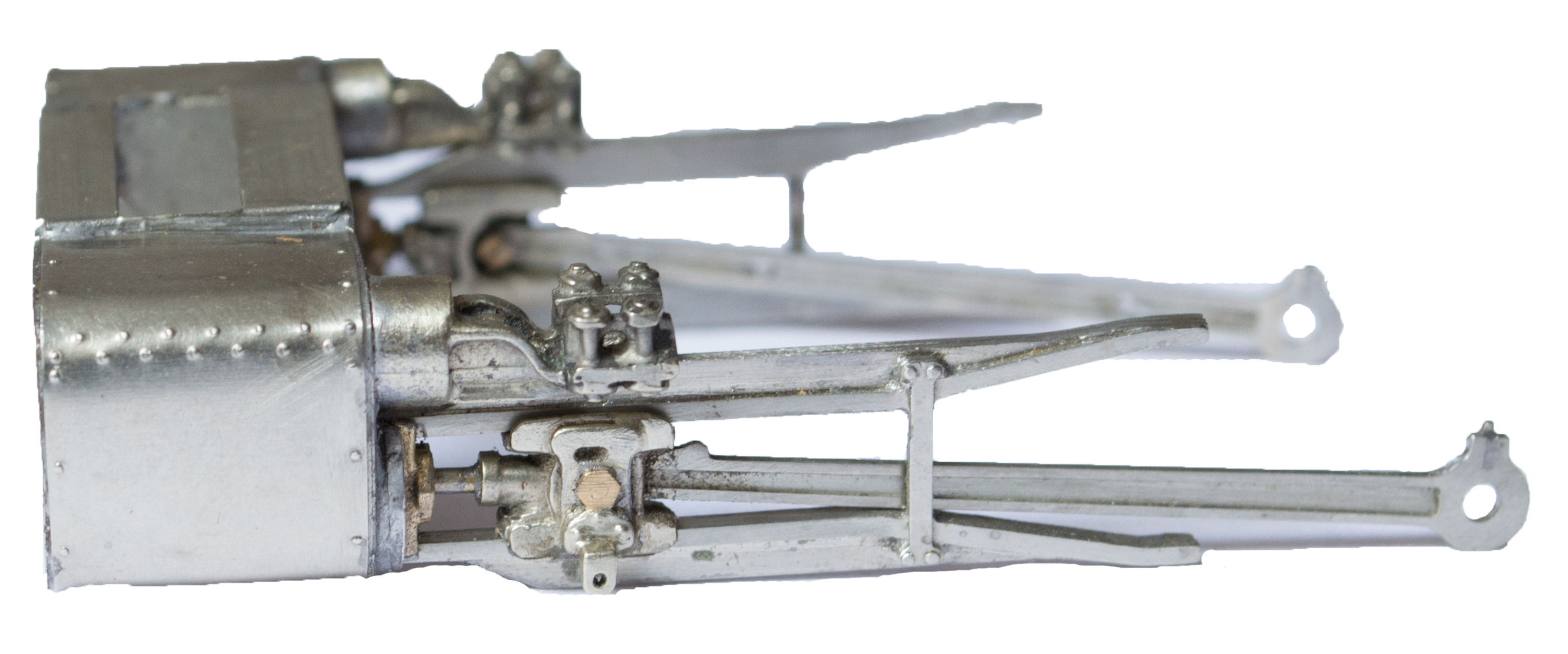

Cylinders and slidebars |
.jpg)
.jpg)
