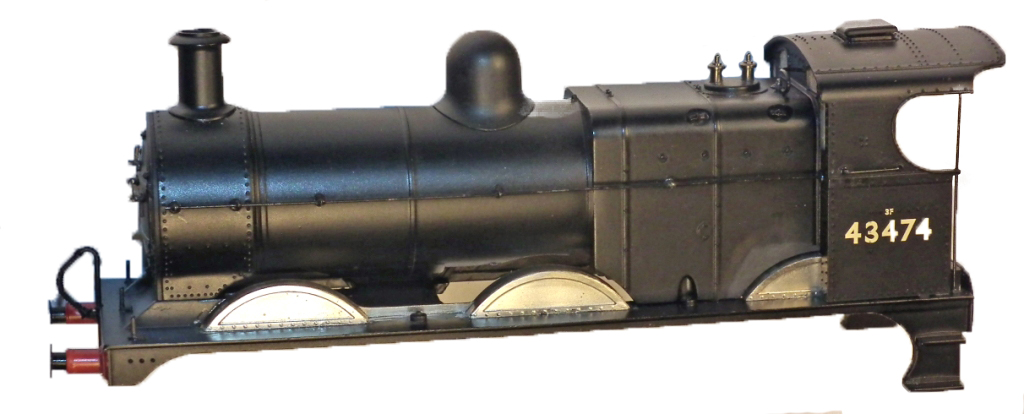

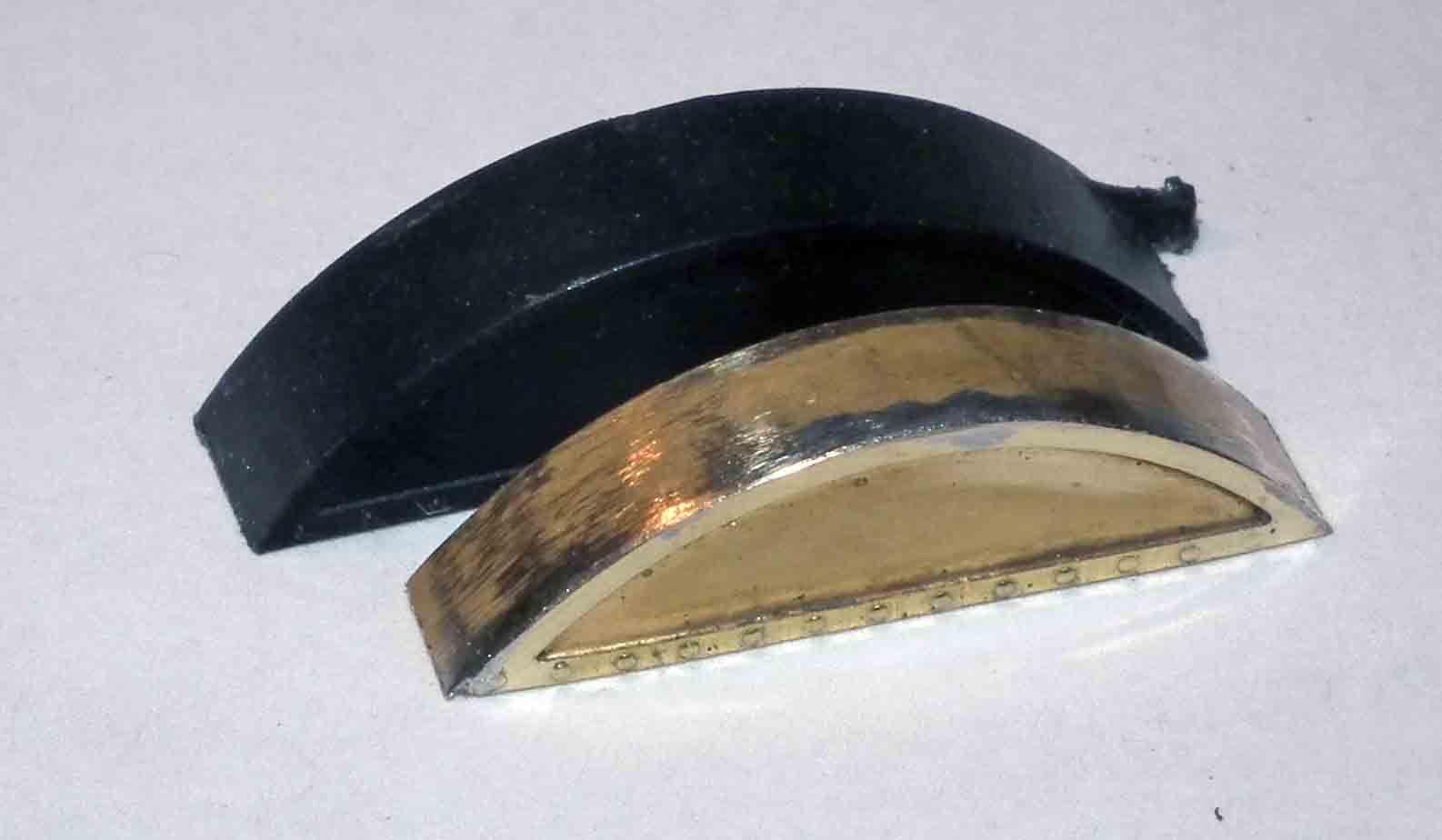

Etched brass replacement splashers for the Bachmann MR/LMS 3F and 4F 0-6-0s. The RTR locomotives have splashers that are 1.5mm diameter too large and these are designed to replace them. On the Bachmann 3F model the front and middle splashers are separate plastic additions to the Mazak footplate so are easy to remove, the rear ones are moulded as part of the plastic firebox sides. The Brassmasters replacements have to be formed and fitted, and include the frame extensions above the footplate that link the leading two splashers.

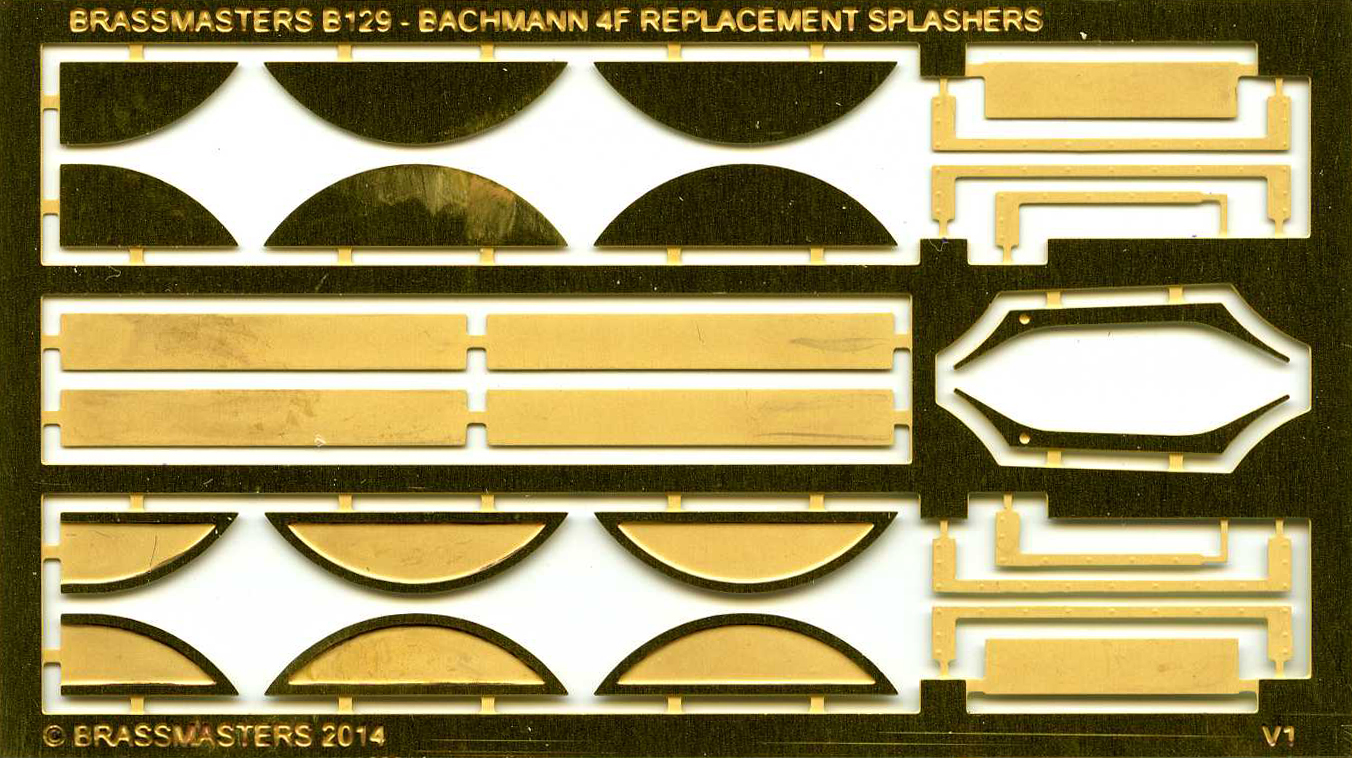

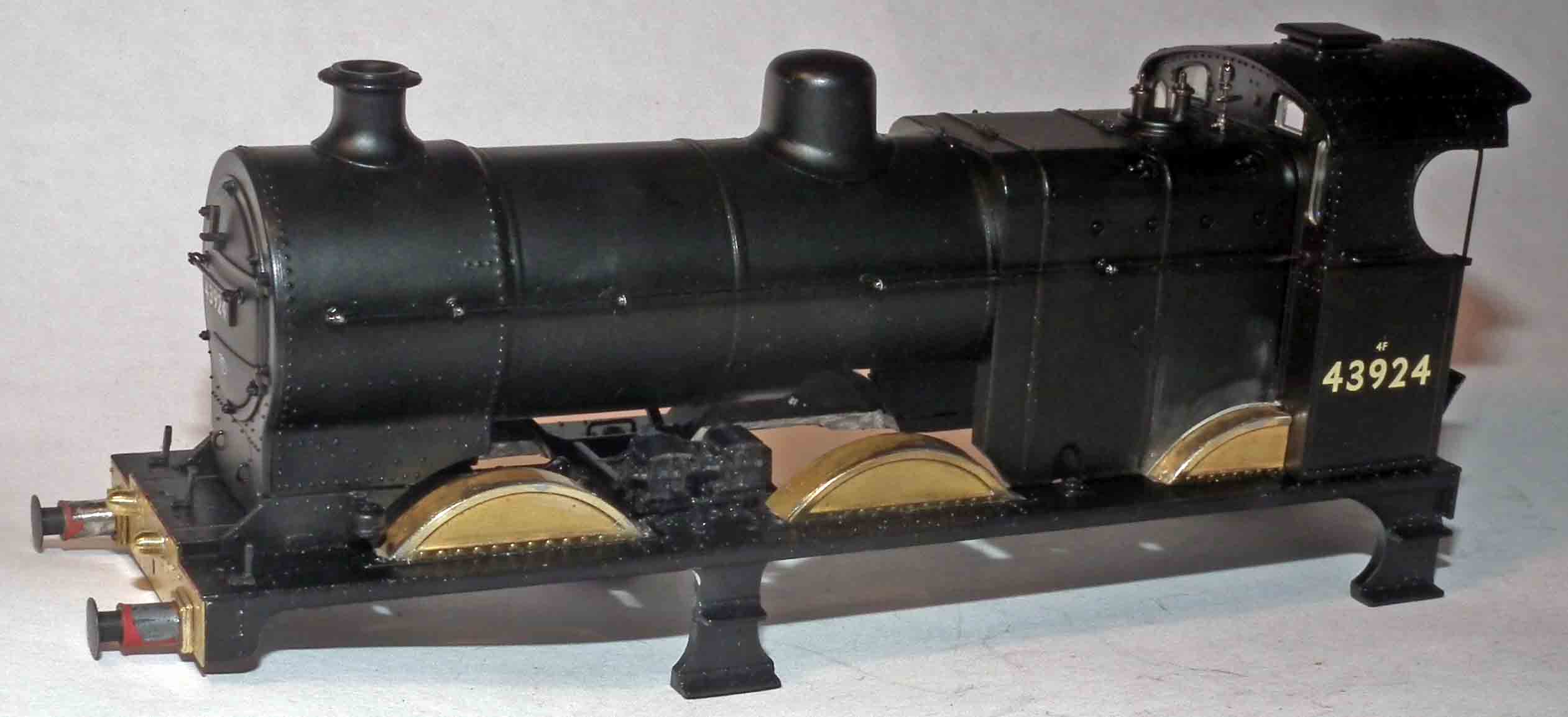

These are also available for the Bachmann LMS 4F 0-6-0. 4Fs numbered up to and including 4011 had beaded splashers; those from 4012 onwards had plain. The etch provides both options.





Ref   Price
B128   Bachmann MR/LMS 3F 0-6-0  5 Download instructions
B129   Bachmann MR/LMS 4F 0-6-0 5 Download instructions
