GNR/LNER A1 and Right-hand drive A3 4-6-2



Home
Up
Buying and price list
Loco and tender kits
EasiChas
RTR detailing kits
Etched windows
Rolling stock
Track details
Accessories
Gallery
Exhibitions
Useful sites
Contact us

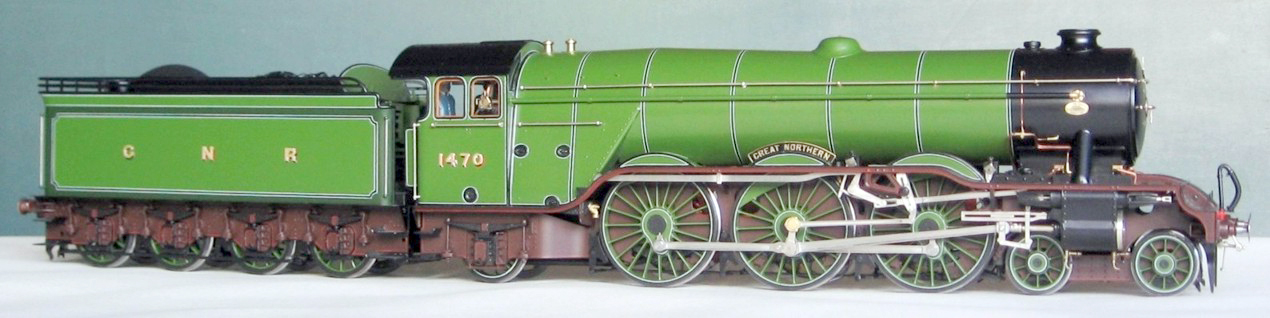

Original GNR A1 1470 Great Northern with coal rail tender in 7mm built by Tom Mallard  - the 4mm kit builds up to produce a similar model

This kit is for the right-hand drive unstreamlined Gresley Pacifics. You can build the engines in their original condition as class A1 or after their conversion to class A3, until circa 1952-54, when they were eventually converted to left hand drive.

Ref

Specification

Price

To complete

L15

Etched nickel silver frames, motion and brass superstructure

Lost wax, whitemetal and turned fittings

Flexichas suspension

Non-working, ‘dummy’ inside motion

Designed by Martin Finney

£180

GNR/LNER coal-rail tender, corridor tender or streamlined non-corridor tender



 Wheels

Driving: 6' 8" - 20 spoke - Ultrascale, Alan Gibson, Markits

   Bogie: 3' 2" - 10 spoke; Trailing 3' 8" - 12 spoke
 Motor  Designed for a Portescap 1624; alternative is a Mashima 1420
 Gearbox  High Level Road Runner or Highflyer 40:1 or 54:1
Download the instructions View the etches and castings

Variations/modifications incorporated into the kit

Cabs: The first eleven engines were built to the generous GNR loading gauge with high cabs. The remaining engines, except for 1481N, were built to the reduced, composite LNER loading gauge with lower cabs. The first eleven had their cabs altered to conform between 1928 and 1933.

Cab sides: on the lower cabs the original cut-out was increased in height by 11" at the same time as bucket seats fitted.

Chimney: original high type for GNR loading gauge and lower type for the LNER composite loading gauge.

Dome: original high type for GNR loading gauge and lower type for the LNER composite loading gauge plus the two types of banjo domes fitted to the A3 class with the later boiler from 1940 onwards.

Firebox: All the fireboxes fitted to A1 class boilers and to the first five A3 class conversions were similar in appearance with four washout plugs on the left hand side, and three on the right. With the next batch of boilers, the numbers of washout plugs were increased by one each side.

Firebox crown washout plugs/door covers: Originally square ended plugs and from circa 1936 onwards circular covers.

Safety valves: original large type for GNR loading gauge and smaller type for the LNER composite loading gauge.

Frames: Differing frame lightening hole arrangements. In their original condition these engines had four large oval holes together with a 12" circular hole ahead of the cylinders. However due to the surprising frequency with which frames were replaced or repaired the large holes either disappeared, were plated in from inside or were replaced by the 12" circular holes that were standard on the later new A3s.

Frame rivets: The original engines were built using countersunk rivets and so give a smooth appearance to the frames. Many photographs show a gradual change to rivets with a visible head as frames were repaired or replaced.

Valve gear: All the engines were originally built with short travel valve gear with narrow platforms and steampipes which extended down to the level of the footplate. Between March 1927 and May 1931 they were rebuilt with long travel valve gear with wider platforms and shorter steampipes. This change alters the length of the crosshead arm and the arm below the radius link.

Bogie:  Originally the engines were built with the swing link bogies which were converted to the helical spring type circa 1933-34.

Bufferbeam: The first twelve engines had a rectangular bufferbeam. The corners were subsequently cut away to clear at the platforms at Newcastle later engines being built with this modification.

Front footsteps: Nos. 1472-81 were originally equipped with a light bar iron type. These were all removed by 1927.

From 1935 onwards all the engines were fitted with a plate type and at the same time small grab handles were fitted to the front drop plate.

Rear Steps: Nos. 1470-80 were built with a width of 8' 8" over the steps. The remainder were built with narrower steps with an overall width of 8' 4".

Front end cover plates: Small cover fitted from 1933 onwards.

Rear spring retaining brackets: Fitted later.

Anti-vacuum valve plate - Two types provided.

Cab seats: original type replaced with bucket seats from circa 1935 onwards.

Lamp irons - footplate: second lamp iron on right-hand side removed from 1931.

Lamp iron - smoke box door: two different types.

Reversing rod: Different shape depending on whether Doncaster or North British built.
