Short firebox with domed boiler Long firebox Long firebox with forward top feed

For more pictures

Click the pictures to view full size and for more pictures

For more pictures

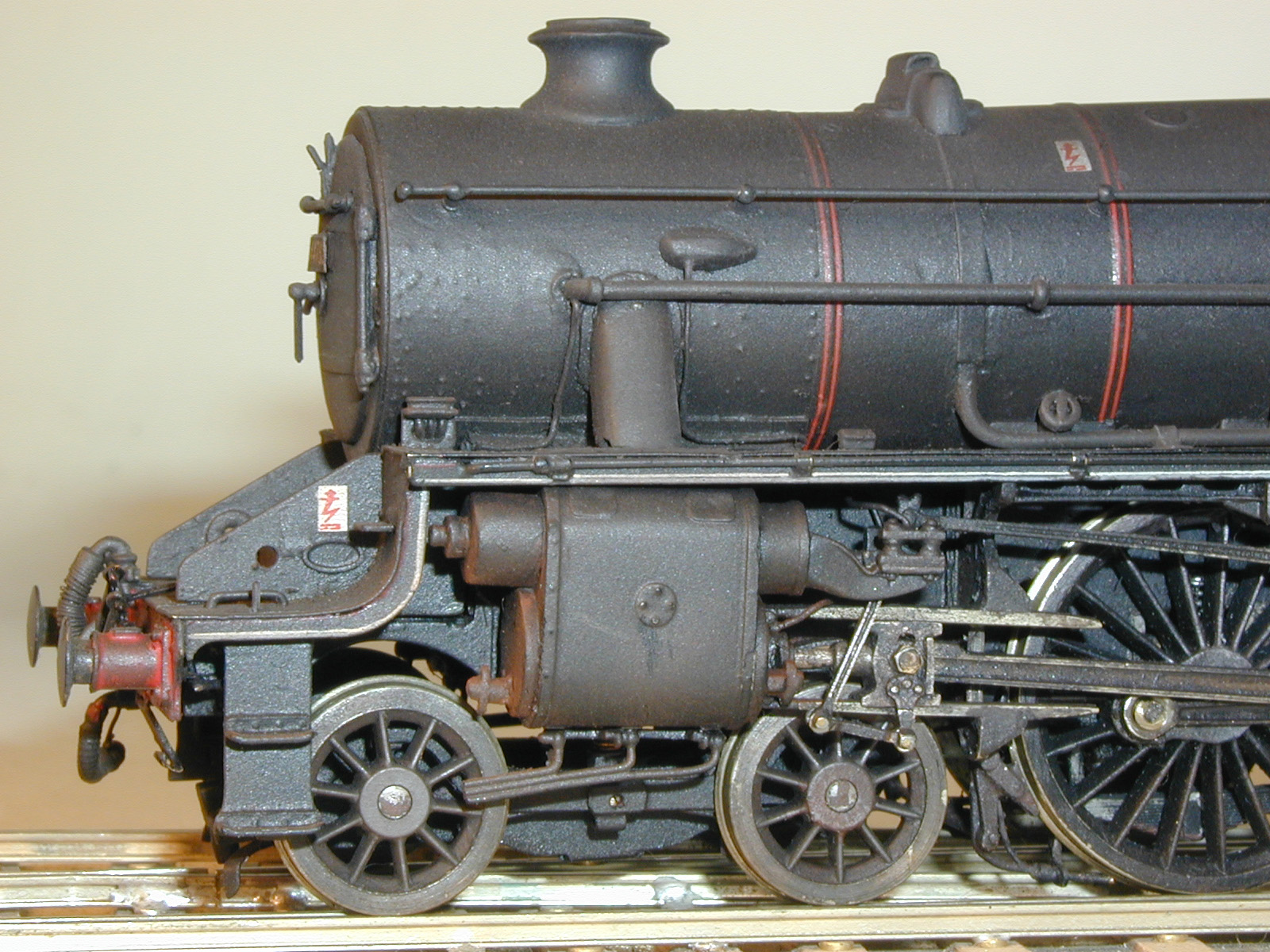

Short firebox

For your prototype information

Long firebox

Vertical throatplate  - 27'2"wheelbase covers 225 locomotives 5000-5224

Cl5 Profile.jpg (218212 bytes)  Cl5Supp.jpg (213348 bytes) Sloping throatplate  - 27'2" wheelbase covers 507 locos  5225-5499,4768-4999

Includes details for original Vulcan Foundry batch

Co-authored by two of the Brassmasters team

Includes alternative top feeds and other main variants

Ref



Specification

Price

To complete

L104

Short firebox / vertical throatplate

Etched nickel silver frames, motion and brass superstructure

Resin cast boiler and firebox

Lost wax, whitemetal and turned fittings

Sprung machined axleboxes

170

 Stanier 4000 gallon tender

 Wheels

 Bogie - Ultrascale 3'3" LMS 10 Spoke bogie Stanier or Alan Gibson G48395T

 Driving-  Ultrascale 6'0" LMS 19 Spoke 14"c/t c.b.s. Stanier or Alan Gibson G4872

L105

Long firebox / sloping throatplate

170

 Motor  Designed for a Portescap 1624 but an alternative is a Mashima 1420
 Gearbox  High Level Road Runner or Highflyer 40:1 or 54:1
